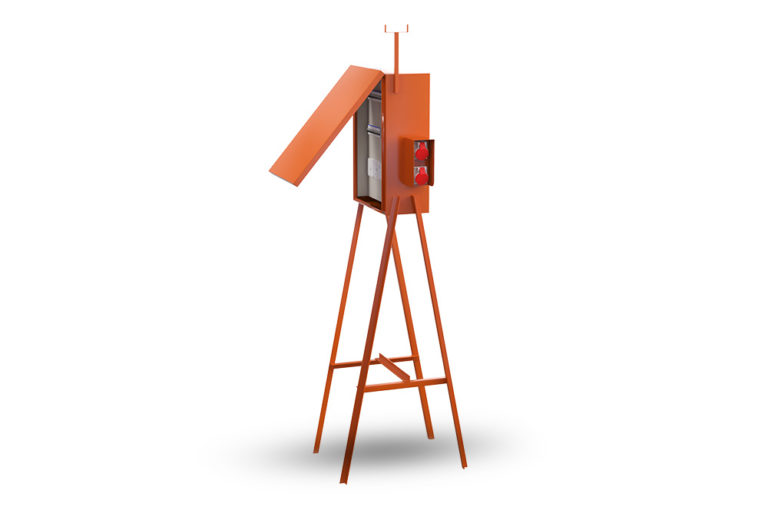

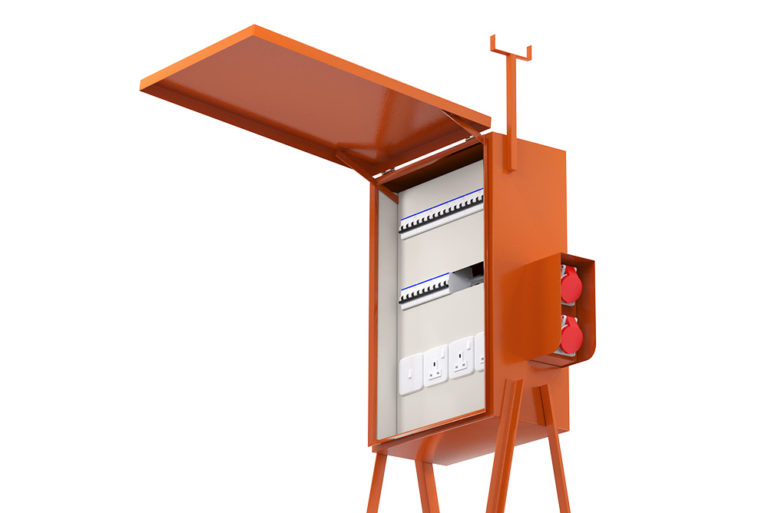

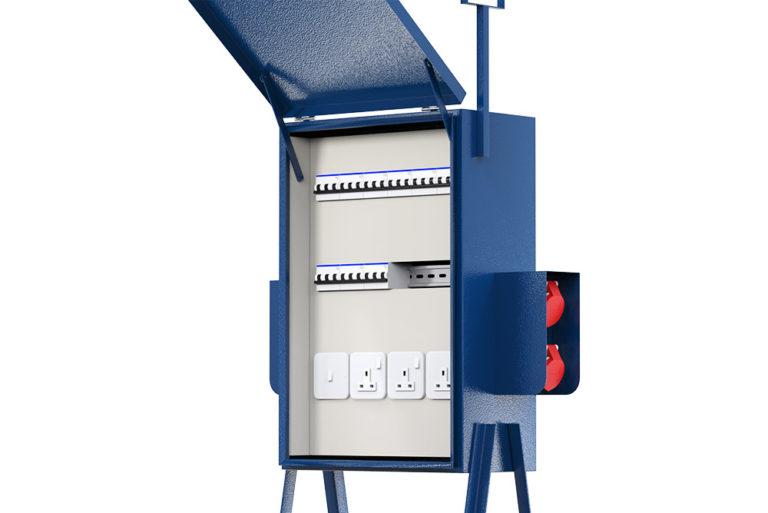

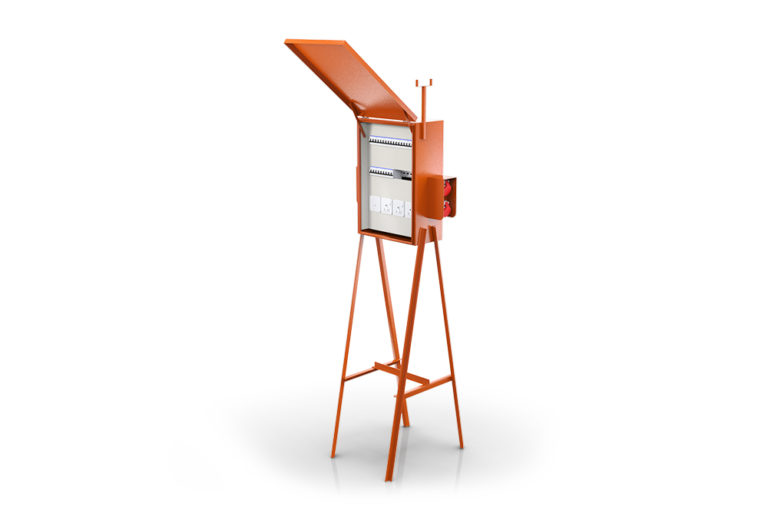

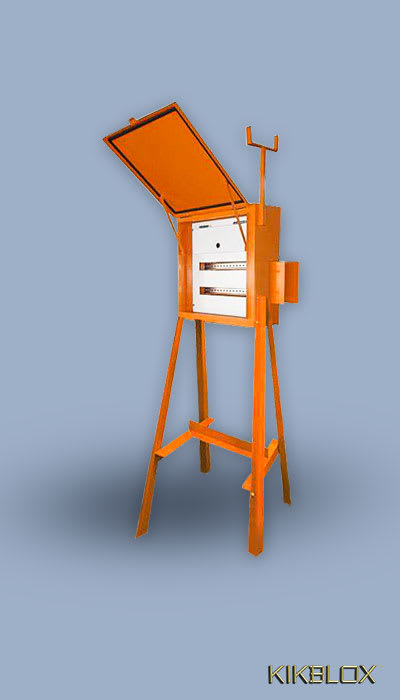

TEMPORARY POWER DB
KIKBLOX designs and manufactures a wide range of Low Voltage distribution equipment for temporary power DB to construction and mining sites. Supplied with medium height stand to mount up the DB where ever you need, Top branched insulated Hanger to support incoming power cables. This is the ideal solution for mining sites, with flexibility to move around the power along with the Distribution board.
TEMPORARY POWER DB
Key Features:
- Material – 2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using Nano technology
- Body – Folded and seam welded. mountable Stand, mountable top incoming cable Holder
- Gasket – Sealing is ensured by an injected one piece polyurethane gasket
- Earthing – M6x10 mm earthing studs, M6 nuts, earthing washers and earthing labels
- Protection – Up to IP 65
- Finish – RAL 2000, Fine textured, Structured powder coating / Weather Proof Primer Under coated.
- Door – Concealed hinges with opening of 120 Angle. Opens form Bottom to top side supported by flexible Door stay.
- Lock – Standard IEC lock (Steel / Plastic / Stainless Steel + Key)
- Gland Plate – Top Gland plates covering the spacious Gland holes for easier cabling
- Content – Box, Door, Mountable Stand, Top Cable Holder, Escutcheon Door, Front Plate, Din Rails, Hinges, Locks, Fixing screws, Cover plugs, Stiffener rails, and Earthing facilities
