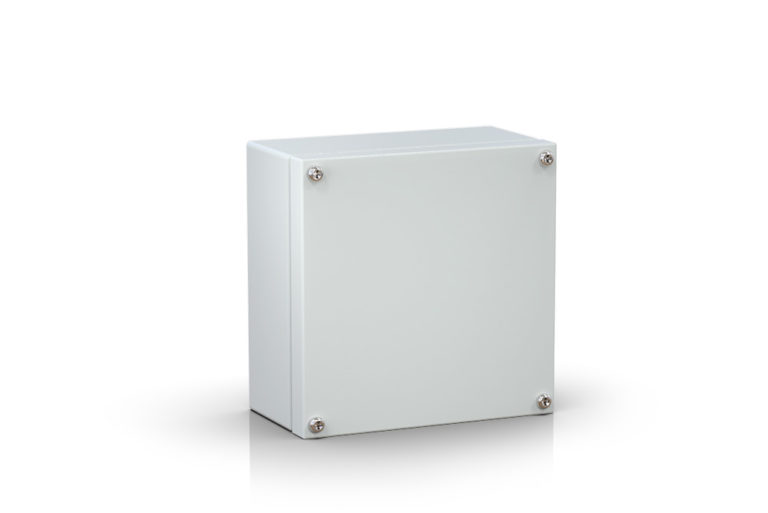

Terminal Box

KIKBLOX terminal boxes are manufactured to deliver the end customer an ideal solution for their electro-mechanical jointing applications! With KIKBLOX’s new design you can fix mounting plate or mounting rails to best suit your purpose. Customization also available to bring you the hassle free installation. Available also in Stainless steel finish on request.

Key Features:

  • Type – Wall Mounting / Pole Mounting.
  • Base Material – 1.2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using Nano technology
  • Body – Folded and seam welded. Four 9mm diameter holes for wall fixing. Mounting plate / Mounting rail fixation.
  • Gasket – Sealing is ensured by an injected one piece polyurethane gasket.
  • Earthing – M6x10 mm earthing studs in body and Lid, M6 nuts, earthing washers and earthing labels
  • Protection – Up to IP 65 | IK 10 .
  • Surface Finish – RAL 7035, structured powder coating / Fine textured.

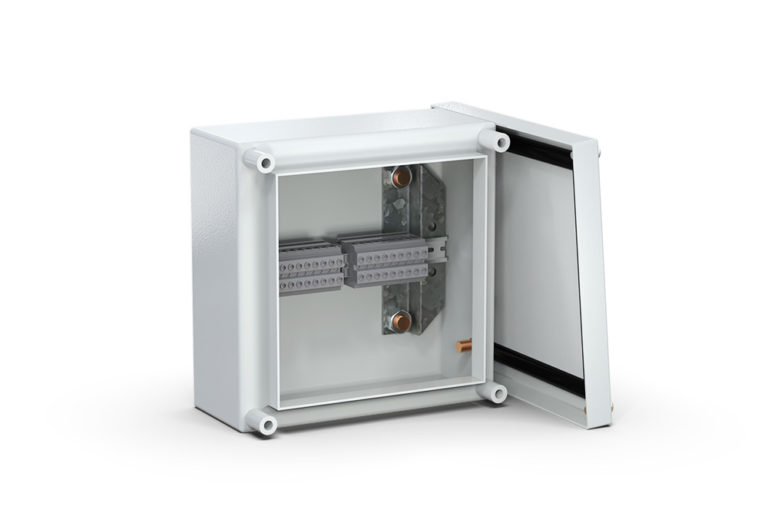

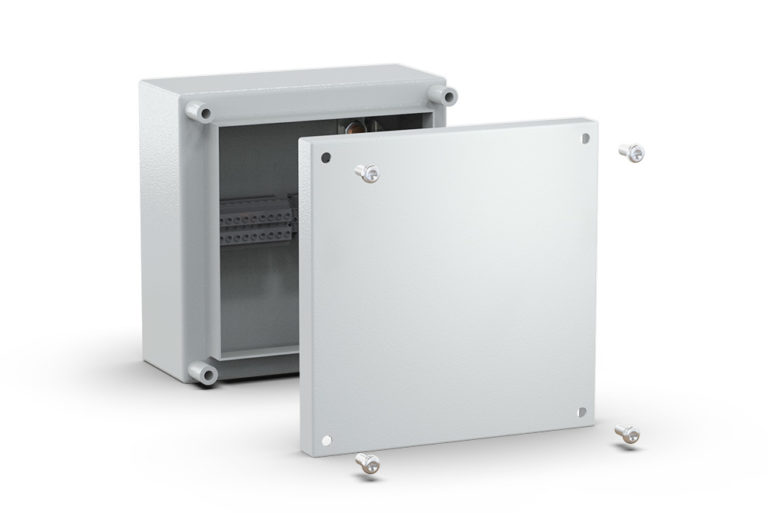

  • Containing – Box, Cover, Mounting rails, Cover Plugs, Fixing screws, Wall mounting brackets and Earthing facilities.

Want to know More ? Please watch our videos/ browse our Catalogue
