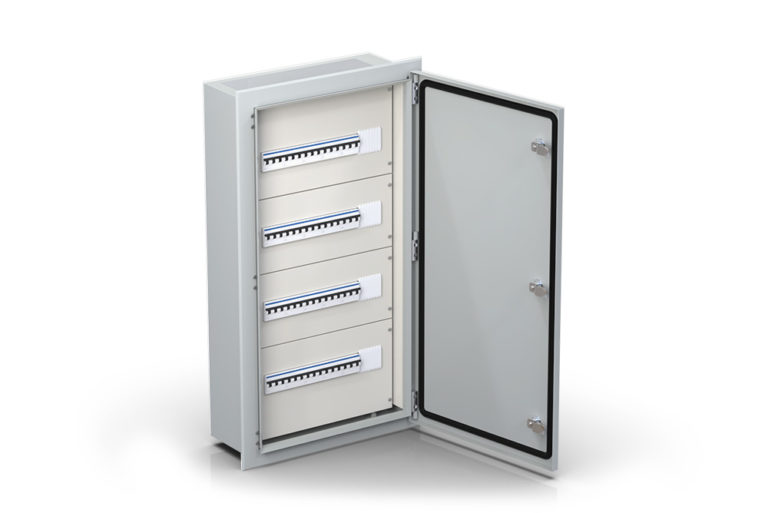

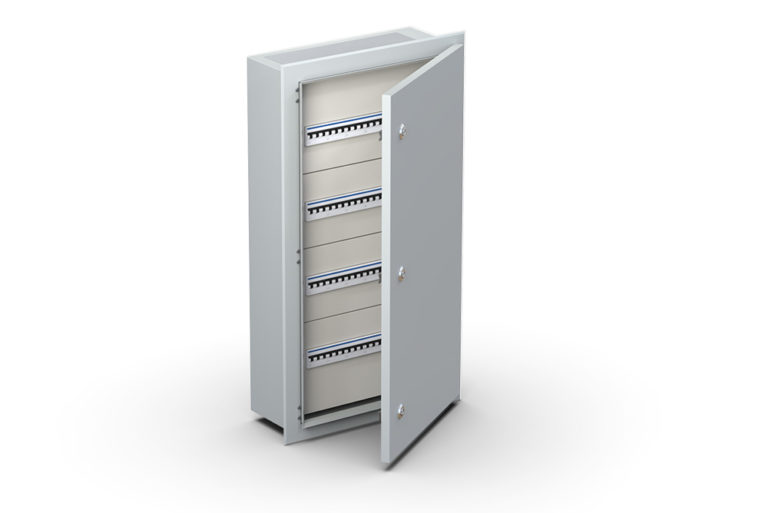

STEEL MCB BOXES (DIN RAIL BOX)

KIKBLOX steel MCB boxes are available in Vast Range of sizes. You can select the box size according to the number of rows required.

E.g. :- 4way/6way/8way/10way/12way/16 way- SPN and TPN. Easily mount your MCB’s on the assembled DIN Rail’s and use the flush frame to sink the enclosure to the wall.

Scratch proof textured paint finish. The Spacious Gland opening ensure the ease of wiring. Produced using Electro Galvanized Mild Steel sheet to give the maximum Protection to internal equipment’s. Available also in Stainless steel finish on request


STEEL MCB BOXES

Key Features:

  • Type – Wall Mounting / Pole Mounting.
  • Base Material – 1.2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using Nano technology
  • Body – Folded and seam welded. Four 9mm diameter holes for wall fixing. Mounting plate / Mounting rail fixation.
  • Gasket – Sealing is ensured by an injected one piece polyurethane gasket.
  • Earthing – M6x10 mm earthing studs in body and Lid, M6 nuts, earthing washers and earthing labels
  • Protection – Up to IP 65 | IK 10 .
  • Surface Finish – RAL 7035, structured powder coating / Fine textured.
  • Containing – Box, Cover, Mounting rails, Cover Plugs, Fixing screws, Wall mounting brackets and Earthing facilities.


enclosure sheet steel powder painted
