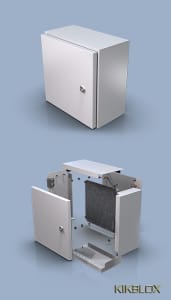

Flat Packed Box

This is the best product where your concern is for storage of box enclosure in a minimum space and minimum cost, rated up to IP 42.



  •   Easy to Assemble
  •   Lowest Storage Space
  •   Patented Design
  •  Maximum Dimension up to 600 X 800X 200

Suitable For

  • Small Distribution switchboards up to 250A
  • Consumer units
  • Control-PLC, C BUS Switchboard
  • Temporary Panels
  • Terminal Box
  • UPS Applications

Key Features

material_ui

Material

2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using nano technology

Body

Folded and bolting. Four 9mm diameter holes for wall fixing. Four M8x30 studs for bottom profiles / Mounting plate fixation

Gasket

Door sealing is ensured by an injected one piece polyurethane gasket

Earthing

M6x10 mm earthing studs in body and Door, M6 nuts, earthing washers and earthing labels

Protection

Up to IP 42

Finish

RAL 7035, structured powder coating / Fine textured

Door

Concealed hinges with opening of 120 Angle. Can be fixed to both left & right side

Lock

Standard IEC lock (Steel / Plastic / Stainless Steel + Key)

Content

Side Plates, Door, Hinges, Locks, Mounting Plate, Fixing screws, Wall mounting brackets and Earthing facilities
