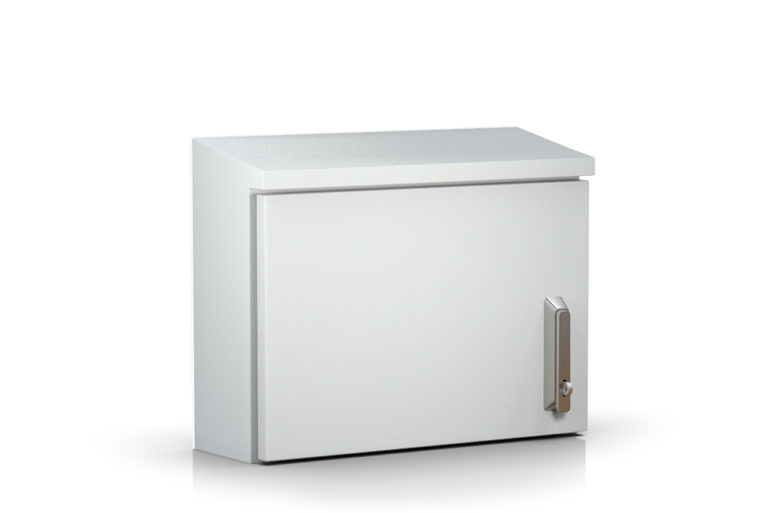

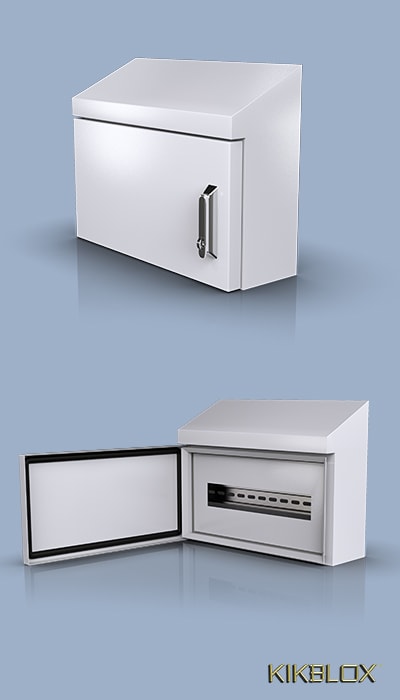

Sloping Roof Box – IP 66
Use these to protect your electrical switches and control equipment while preventing build-up of dust, debris and waste material. Can be used up to 250A with IP 66 protection.
- Weatherproof and UV Protected
- Stainless Steel pad lockable door lock
Suitable For
They are suitable for internal and external electrical installations for industrial, infrastructure, commercial sites.
- Indoor/Outdoor Panels
- Temporary Panels
- Terminal Boxes
- Telecommunication junction boxes
Key Features
Material
2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using nano technology
Body
Folded and seam welded. Four 9mm diameter holes for wall fixing. Four M8x30 studs for bottom profiles / Mounting plate fixation
Gasket
Sealing is ensured by an injected one piece polyurethane gasket
Earthing
M6x10 mm earthing studs in body and Door, M6 nuts, earthing washers and earthing labels
Protection
Up to IP 66
Finish
RAL 7035, structured powder coating / Fine textured
Door
Concealed hinges with opening of 120 Angle. Can be fixed to both left & right side
Lock
Stainless Steel Swing Handle Door Lock
Gland Plate
Top / Bottom Gland plates covering the spacious Gland holes for easier cabling
Content
Box, Door, Cover Plate, Hinges, Locks, Mounting Plate, Fixing screws, Cover plugs, Stiffener rails, Wall mounting brackets and Earthing facilities
