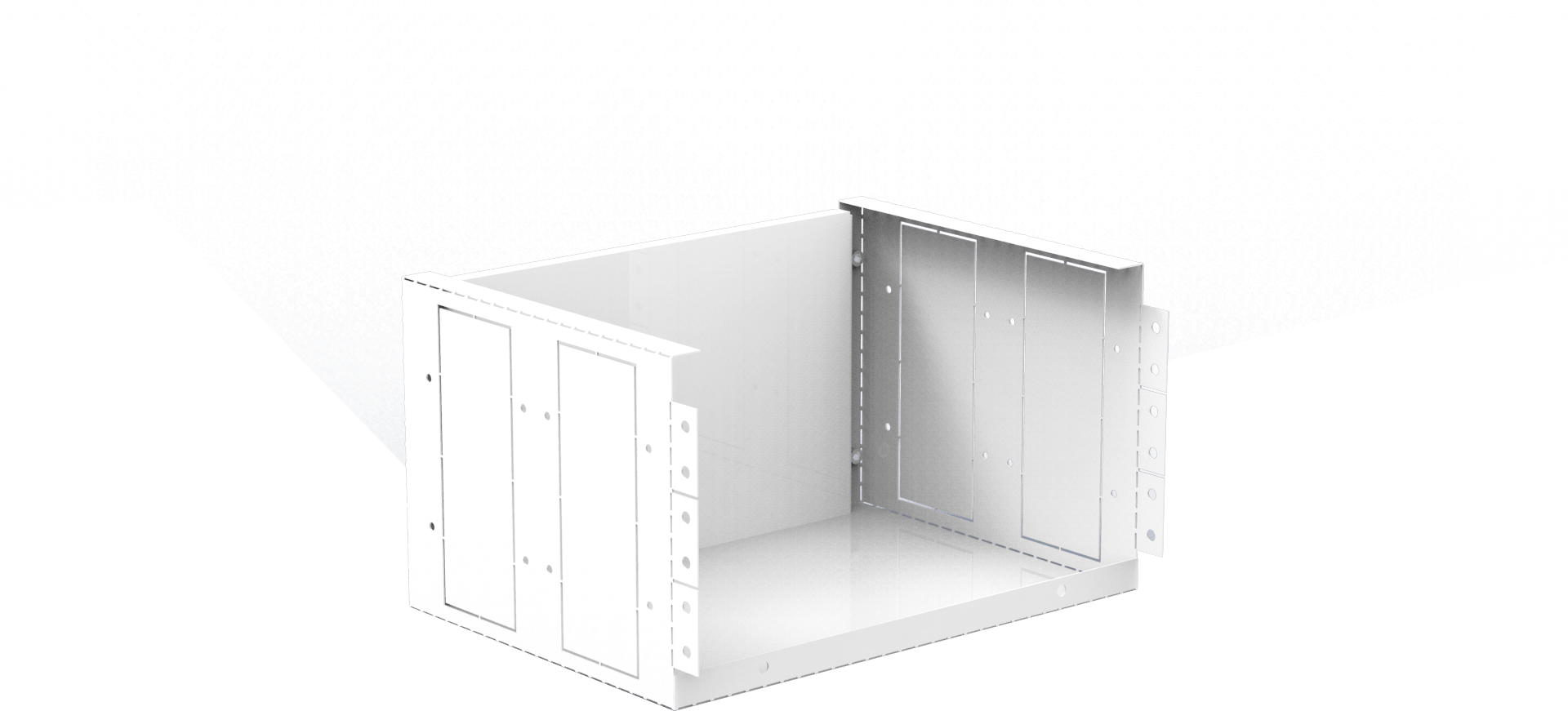

Fixed Compartment
SPECIFICATIONS
Material – Electro Galvanized steel 1.0mm
Facilitates Form 4 construction
| DESCRIPTION | SIZE (mm) (W x H x D) |
MOUNTING PLATE USABLE AREA (W x H) |
QTY | ORDER CODE RAL 9010 |
|---|---|---|---|---|
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 200 x 200 | 308 x 197 | 1 NO | COM040202ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 400 x 200 | 308 x 397 | 1 NO | COM040402ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 600 x 200 | 308 x 597 | 1 NO | COM040602ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 200 x 200 | 508 x 197 | 1 NO | COM060202ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 400 x 200 | 508 x 397 | 1 NO | COM060402ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 600 x 200 | 508 x 597 | 1 NO | COM060602ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 200 x 200 | 708 x 197 | 1 NO | COM080202ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 400 x 200 | 708 x 397 | 1 NO | COM080402ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 600 x 200 | 708 x 597 | 1 NO | COM080602ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 200 x 300 | 308 x 197 | 1 NO | COM040203ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 400 x 300 | 308 x 397 | 1 NO | COM040403ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 600 x 300 | 308 x 597 | 1 NO | COM040603ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 200 x 300 | 508 x 197 | 1 NO | COM060203ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 400 x 300 | 508 x 397 | 1 NO | COM060403ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 600 x 300 | 508 x 597 | 1 NO | COM060603ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 200 x 300 | 708 x 197 | 1 NO | COM080203ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 400 x 300 | 708 x 397 | 1 NO | COM080403ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 600 x 300 | 708 x 597 | 1 NO | COM080603ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 200 x 400 | 308 x 197 | 1 NO | COM040204ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 400 x 400 | 308 x 397 | 1 NO | COM040404ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 400 x 600 x 400 | 308 x 597 | 1 NO | COM040604ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 200 x 400 | 508 x 197 | 1 NO | COM060204ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 400 x 400 | 508 x 397 | 1 NO | COM060404ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 600 x 600 x 400 | 508 x 597 | 1 NO | COM060604ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 200 x 400 | 708 x 197 | 1 NO | COM080204ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 400 x 400 | 708 x 397 | 1 NO | COM080404ABKC |
| FIXED COMPARTMENT WITH MOUNTING PLATE | 800 x 600 x 400 | 708 x 597 | 1 NO | COM080604ABKC |
