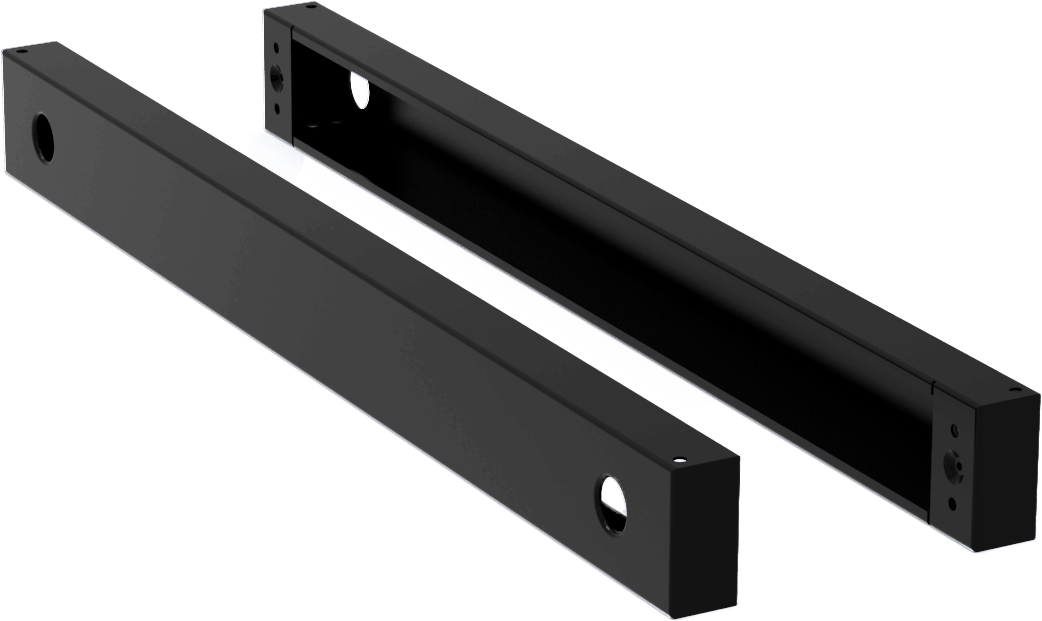

Base Frame Width Profile For L Panel
SPECIFICATIONS
- Die casted out of a special alloy to provide the desired strength
Material – Electro Galvanized steel 2.0mm standard and 3.0mm for heavy duty
Standard height is 100mm but on special requests it can be increased up to 200mm
| DESCRIPTION | PANEL WIDTH (mm) |
QTY | ORDER CODE STANDARD (2mm) RAL 7035 |
ORDER CODE HEAVY DUTY (3mm) RAL 2000 |
|---|---|---|---|---|
| BASE FRAME WIDTH PROFILE FOR L PANEL | 425 | 1 SET | BFL420000AEJE | BFL420000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 625 | 1 SET | BFL620000AEJE | BFL620000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 825 | 1 SET | BFL820000AEJE | BFL820000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 1025 | 1 SET | BFL100000AEJE | BFL100000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 1225 | 1 SET | BFL120000AEJE | BFL120000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 1425 | 1 SET | BFL140000AEJE | BFL140000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 1625 | 1 SET | BFL160000AEJE | BFL160000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 1825 | 1 SET | BFL180000AEJE | BFL180000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 2025 | 1 SET | BFL200000AEJE | BFL200000AFJE |
| BASE FRAME WIDTH PROFILE FOR L PANEL | 2225 | 1 SET | BFL220000AEJE | BFL220000AFJE |
