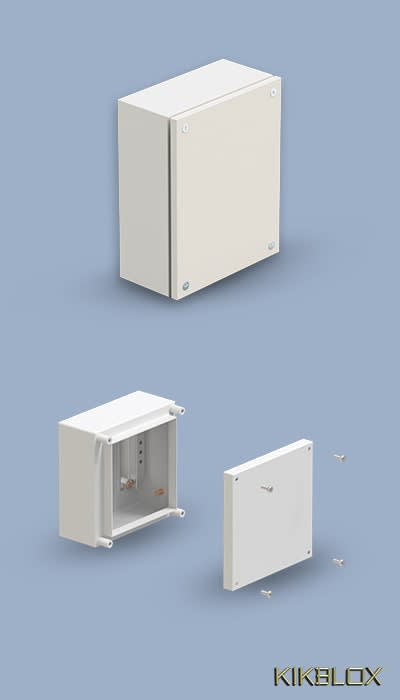

Terminal Box

KIKBLOX terminal boxes are manufactured to deliver the end customer an ideal solution for their electro-mechanical jointing applications! With KIKBLOX’s new design you can fix mounting plate or mounting rails to best suit your purpose. Customization also available to bring you the hassle free installation. Available also in Stainless steel finish on request.


Terminal Box

Key Features:



  • Type  – Wall Mounting Flush Type
  • Material  – 1.2 mm / 1.5 mm Electro Galvanized sheet / Pretreated using Nano technology
  • Body – Folded and seam welded. Four 9mm diameter holes for wall fixing. Row mounting rail assembled with Din rails & Front plates.
  • Gasket – Sealing is ensured by an injected one piece polyurethane gasket
  • Earthing – M6x10 mm earthing studs in body and Door, M6 nuts, earthing washers and earthing labels
  • Protection – Up to IP 65 | IK 10
  • Finish – RAL 7035, structured powder coating / Fine textured
  • Door – Concealed hinges with opening of 120 Angle. Can be fixed to both left & right side as requirement
  • Lock – Standard IEC lock/Flush lock  (Steel / Plastic / Stainless Steel + Key)
  • Gland Plate – Top / Bottom Gland plates covering the spacious Gland holes for easier cabling
  • Content – Box, Door, Hinges, Locks, Din rails, U rails, Mounting rails, Cover Plates (Escutcheon plates), Fixing screws, Flush frame Wall mounting brackets and Earthing facilities
